Specifications | |

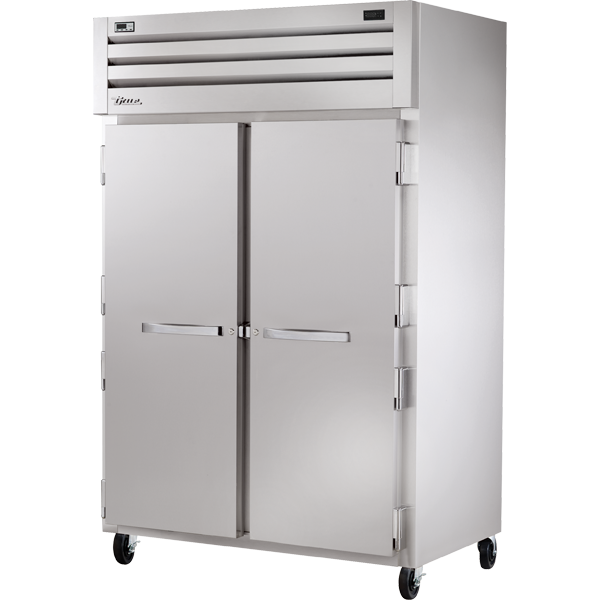

Model | STA2DT-2S-HC |
Door Count | 2 |
Shelf Count | 6 |
Weight (lbs) | 725 |
Weight (KG) | 329 |
Dimensions | Imperial | Metric |
Width | 52–5/8 | 1337 |
Depth | 33–3/4 | 858 |
Height | 77–3/4 | 1975 |
CORD LENGTH | 9 | 2.74 |
Electrical | |
Amps | 11.6 |
Voltage | 115/60/1 |
NEMA Configuration | 5-20P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
-
Design
- True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
-
Refrigeration System
- Two independent, self contained refrigeration systems; CFC free, environmentally friendly and factory balanced.
- R134A refrigerator refrigerant - R404A freezer refrigerant.
- High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section (Refrigerator on left side) and -10°F (-23.3°C) in the freezer section (Freezer on right side).
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
-
Cabinet Construction
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
-
Doors
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
-
Shelving
- Three (3) Heavy duty, chrome plated, wire shelves per section.
-
Lighting
- LED interior lighting, safety shielded. (STR/STA models standard, STG optional)
-
Model Features
- Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready.
- NSF/ANSI Standard 7 compliant for open food product.
-
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-20R
-
Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 6" (153 mm) stainless steel legs.
- Hasp lock.
- Field reversible hinge.
- Additional shelves.
- Stainless back. (STR, STA, STG)
- Security package.
SHELVING KIT OPTIONS
Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section and -10°F (-23.3°C) in the freezer section. Refrigerator located in left section; freezer on right section. Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty chrome extruded door handles. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
