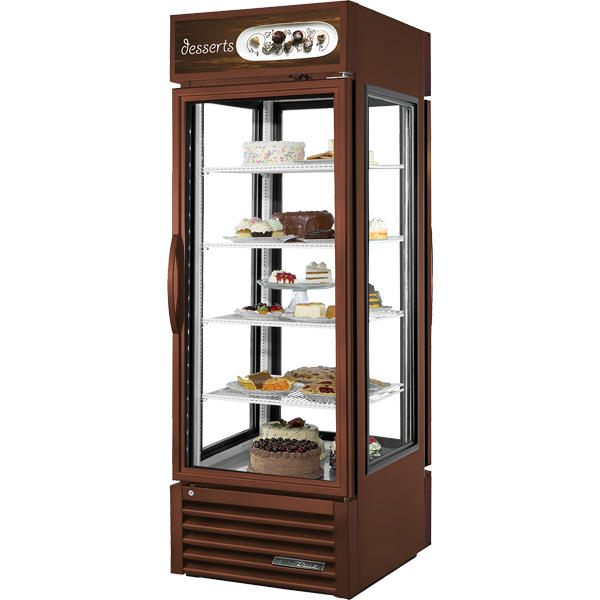

G4SM-23PT-HC~TSL01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in a stylish merchandiser that creates a dynamic 360° product display.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance; “no stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
• Cabinet Construction
  • Exterior - attractive, non-peel or chip copper powder coated cold rolled steel ends with matching cabinet top and back; durable and permanent.Low-E, double pane thermal insulated glass sides and door assembly. The latest in energy efficient technology.
  • Interior - attractive, black aluminum interior liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Illuminated exterior front and rear sign panels. Variety of sign options available.
• Doors
  • “Low-E”, double pane thermal insulated glass front and rear door assemblies with extruded aluminum frames. The latest in energy efficient technology.
  • Each door fitted with 12” (305 mm) long extruded handle.
  • Self closing doors. Positive seal, torsion type closure system.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
  • Door locks standard.
• Shelving
  • Four (4) adjustable, heavy duty, white PVC coated wire shelves 22–7/8”L x 21–3/4”D (582 mm x 553 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website www.truemfg.com for latest color and sign offerings.
  • Listed under NSF-7 for the storage and/or display of packaged or bottled product.
  • Listed under NSF-7 for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Black exterior.
  • White exterior.
  • Cherry exterior.
  • Black aluminum interior liner.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • 4" (102 mm) diameter castors.
  • Red wine thermostat.
  • Chocolate thermostat.
  • White wine thermostat.
  • Barrel Locks – located in grill assembly (requires one per door)
  • Black shelves.
  • True offer’s four versions of the G4SM-23 with a variety of features to increase the merchandiser’s function and versatility, allowing it to be customized to your needs.
