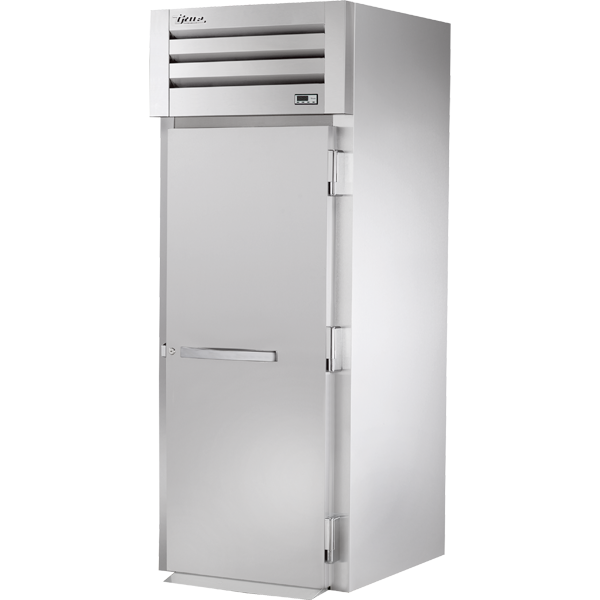

STG1FRI-1S

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s solid door roll-ins are designed with enduring quality that protects your long term investment.
  • Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 404A refrigerant.
  • Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10°F (-23.3°C) cabinet temperature. Ideal for both frozen foods and ice cream.
  • Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True roll-in’s a more efficient low velocity, high volume airflow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of foodservice environments.
  • Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
• Cabinet Construction
  • Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • One (1) heavy gauge stainless steel ramp.
  • Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm)(supplied by others).
• Door
  • Lifetime guaranteed bolt style door lock standard.
  • Door lock standard.
  • Lifetime guaranteed heavy duty all metal working door handle.
  • Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
  • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Lighting
  • Incandescent interior lighting, safety shielded.
• Model Features
  • Exterior digital temperature display, available with either °F or °C .
  • Evaporator epoxy coated to eliminate the potential of corrosion
  • Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Hasp lock.
  • Field reversible hinge.
  • Stainless back. (STR, STA, STG)
  • Security package.
