Specifications | |

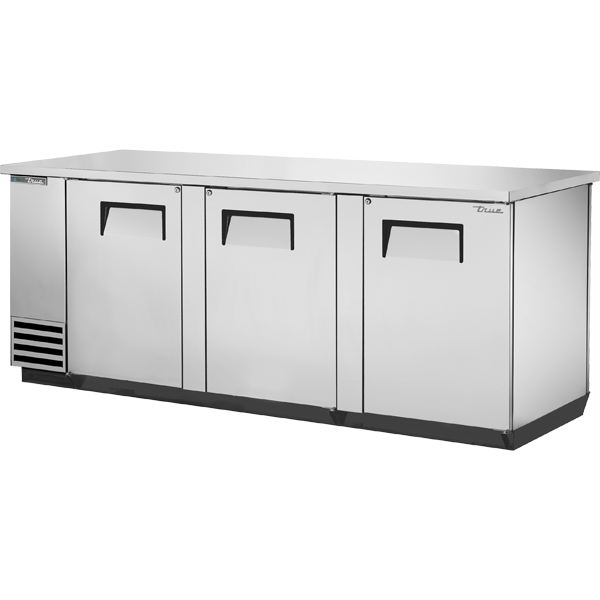

Model | TBB-4PT-S-HC |
Door Count | 3 fr / 3 bk |
Shelf Count | 6 |
Weight (lbs) | 545 |
Weight (KG) | 248 |
Capacity | |
1/2 Barrels | 4 |
12 oz Cans | 152 6-pks |
Dimensions | Imperial | Metric |
Width | 90–3/8 | 2296 |
Depth | 31 | 788 |
Height | 37 | 940 |
CORD LENGTH | 10 | 3.05 |
Electrical | |
Amps | 2.9 |
Voltage | 115/60/1 |
NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
-
Design
- True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
-
Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
- Self-Cleaning RCU Technology eliminates the need for cleaning of condenser coil, reduces energy consumption and helps maintain the coldest temperature and freshest product.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
-
Cabinet Construction
- Exterior - stainless steel front, back, sides and countertop.
- Interior - Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls.
- Door threshold protector prevents damage to cabinet from routine loading of product.
- Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
-
Doors
- Stainless steel exterior with heavy gauge galvanized steel liner.
- Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal doors.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Door locks standard.
-
Shelving
- Six (6) adjustable, heavy duty, black PVC coated wire shelves. Two (2) right and two (2) left shelf dimensions are 23–1/2"L x 21–1/4"D (597 mm x 540 mm). Two (2) center shelf dimensions are 28 1/4"L x 21–1/4"D (718 mm x 540 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
-
Lighting
- LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
-
Model Features
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
-
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
-
Optional Features/accessories Upcharge And Lead Times May Apply.
- 6"(153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64 mm) diameter castors.
- 4" (102 mm) diameter castors.
- Additional shelves.
- Wine racks.
True’s refrigerated back bar coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service. Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C). Exterior – stainless steel front, back, sides and countertop. Interior – Stainless steel floor with 1/2″ (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF/ANSI Standard 7 compliant for packaged and bottled product. Positive seal doors. Entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
