TCGG-36-HC-LD

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

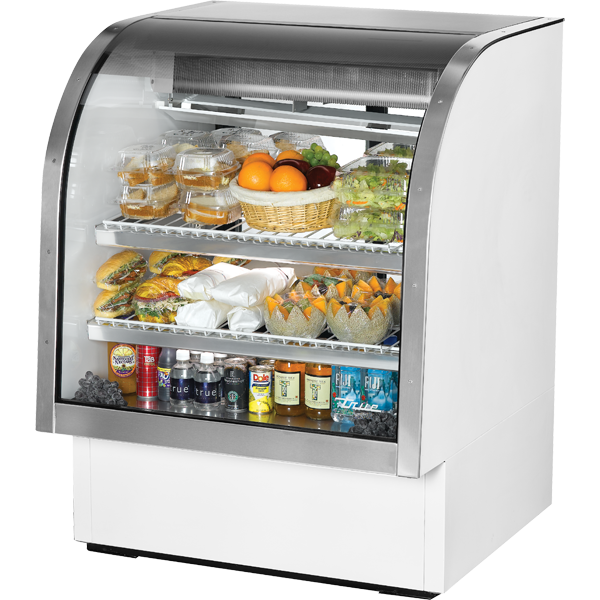

  • True’s curved glass deli display case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of deli products.
  • Gravity coil refrigeration system guarantees the freshest display of meats, cheeses and deli products.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains 38°F to 40°F (3.3°C to 4.4°C).
  • High humidity gravity coil refrigeration system. Ideally suited for deli meats, cheeses and salads.
  • Condensing unit located behind panel in back of unit. Entire system slides out for easy cleaning and maintenance.
  • Automatic defrost system; time-initiated, time-terminated.
• Cabinet Construction
  • Exterior - durable and permanent no peel or chip white powder coated cold rolled steel with stainless steel top and trim.
  • Interior - White aluminum sides and top with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.

  CURVED FRONT DISPLAY GLASS
• Rear Doors
  • "Low-E", double pane thermal glass inserts with mitered plastic channel frames.
  • Each door fitted with 12" (305 mm) long black aluminum handle.
  • Self-closing doors. Sliding doors ride on stainless steel V-Channel with stainless steel bearings for smooth, even, positive closure. Doors fit within plastic channel frame.
• Shelving
  • Two (2) adjustable, lighted, cantilevered white heavy duty PVC coated wire shelves 30–3/8" L x 22–1/2" D (772 mm x 572 mm). Shelving system is cantilevered with adjustable angle to maximize presentation.
• Lighting
  • Cabinet equipped with three LED (3) light sources for maximum product display; two (2) shelf mounted and one (1) cabinet mounted.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Four (4) amp exterior scale receptacle.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • 4" (102 mm) diameter castors.
  • Ratchet locks.
  • Additional lighted shelf (maximum of 3 shelves per cabinet).
  • Non-lighted shelves.
