TDM-DZ-48-GE/GE-S-S

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

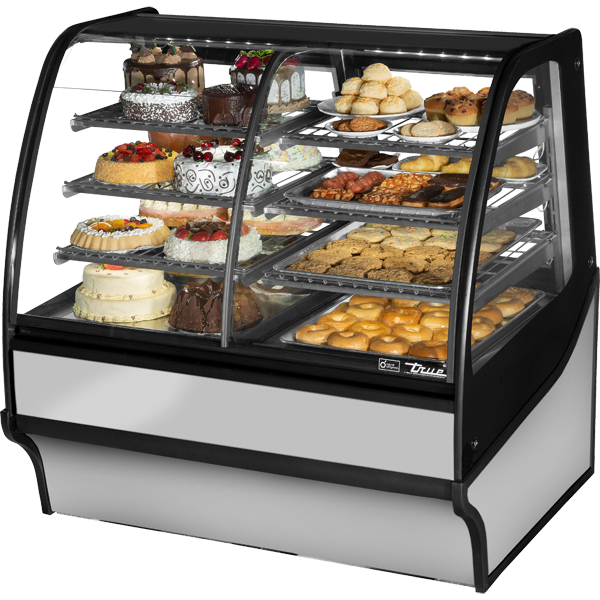

  • True’s combination "refrigerated" and "dry" display case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end deli, desserts and pastries.
  • Please note: If units are banked together, because of side panel, a 1/2" gap will remain between units.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Exclusive reversing condenser fan motors. Fan motors reverse during defrost off cycles to help keep condenser coil free from dirt, dust and debris. Keeping coils clean optimizes the unit’s performance providing colder holding temperatures and increased energy efficiency. Regularly scheduled thorough cleaning of coils still recommended.
  • High capacity, factory balanced refrigeration system that has two (2) temperature range options in refrigerated section. Standard temperature range maintains cabinet temperatures of 33°F to 41°F (.5°C to 5°C), ideally suited for refrigerated bakery and cold deli products. Optional temperature range maintains cabinet temperatures of 42°F to 65°F (5.5°C to 18.3°C), ideally suited for chocolate & wine options.
  • Pull Out Condensing unit slides out for easy cleaning and maintenance.
• Cabinet Construction
  • Exterior - stainless steel rounded front and back, stainless steel side and front panels.
  • Curved glass front and side glass panels.
  • Stainless steel interior for those who appreciate the value of stainless.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Curved glass front and side glass panels.

  CURVED FRONT DISPLAY GLASS
• Rear Doors
  • Two (2) rear sliding glass doors for back access.
  • Each door fitted with 12" (305 mm) long aluminum handle.
  • Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.
• Shelving
  • Six (6) adjustable heavy duty PVC coated wire shelves standard.
  • Each shelf supports a maximum weight of 150 lbs. (69 kg).

  PAN CAPACITY
• Lighting
  • LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.
• Model Features
  • Refrigerator evaporator is epoxy coated to eliminate the potential of corrosion.
  • Front glass swings Up for easy cleaning access.
  • Pull out condensing unit slides out for easy cleaning and maintenance.
  • Electronic temperature control.
  • NSF/ANSI Standard 7 compliant for open food product. Tested and certified for performance at NSF Type II: 80¡F (27¡C) and 55% relative humidity.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 230 - 240V / 50 Hz.
  • Mirrored interior ends
  • Black wire shelves
  • Stainless mezzanine shelves
  • Banking kit
