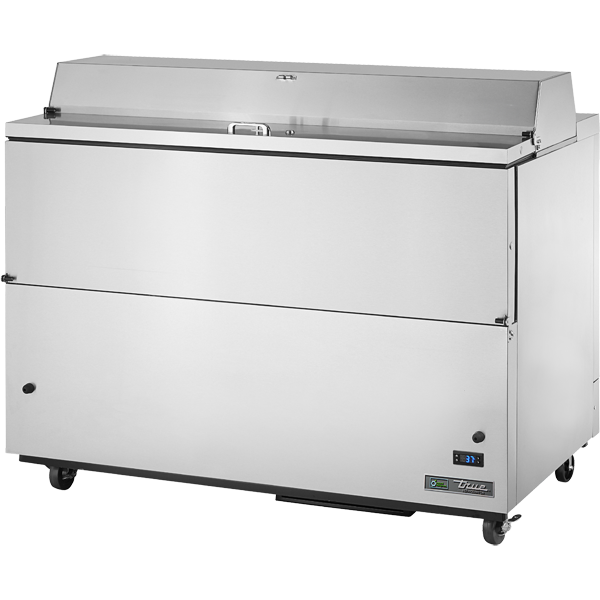

TMC-58-S-SS-HC

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive, durable school milk cooler.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) provide better tasting milk, increased sales and less product waste.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Condensing unit accessed from behind back grill, slides out for easy cleaning and maintenance.
• Cabinet Construction
  • Exterior - all stainless steel front, sides, back and top.
  • Interior - Stainless steel walls and reinforced floor. Standard with heavy duty floor racks.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Designed to hold Sixteen 13"L x 13"D x 11–1/8"H (331 mm x 331 mm x 296 mm) milk crates.
• Doors
  • All stainless steel self-service doors feature convenient drop front and "hold-open" flip-up top. Door support bumpers standard.
  • Door locks standard.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Model Features
  • Exterior digital temperature display.
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Convenient clean out drain with 1/2" (13 mm) NPT-PVC drain plug.
  • Wide gaskets.
  • This unit meets Department of Energy 2017 standards.
  • NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 208 - 230V / 60 Hz.
  • 6" (153 mm) standard legs (mounting plates required).
  • 6" (153 mm) seismic/flanged legs (mounting plates required).
  • Corner bumpers.
