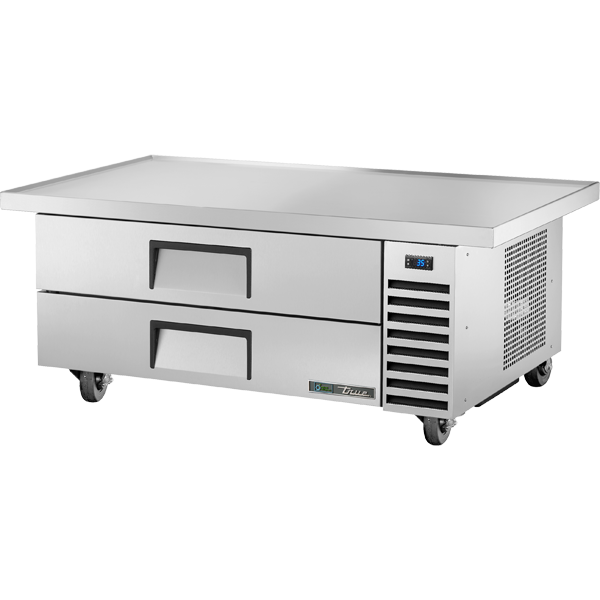

TRCB-52-60-HC

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02) global warming potential (GWP).
  • Oversized, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
  • Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • Sealed, self-lubricating evaporator fan motor and larger fan blades give True chef base units a more efficient, low velocity, high volume airflow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of food service environments.
  • Condensing unit accessed from behind side grill; slides out for easy maintenance.
• Cabinet Construction
  • Exterior - stainless steel front, top and sides. Corrosion resistant GalFan coated steel back.
  • Interior - attractive, white aluminum liner. Stainless steel floor with coved corners.
  • Insulation - entire cabinet structure and drawer facings are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Cabinet top is one piece, heavy duty reinforced 300 series stainless steel. Drip resistant “V” edge protects against spills. Supports up to 717 lbs. (326 kg).
• Drawers
  • Stainless steel exterior drawer facings and liners. Stainless steel drawer frames.
  • Each drawer fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
  • Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
  • Magnetic drawer gaskets of one piece construction, removable without tools for ease of cleaning.
  • Each drawer accommodates three (3) full size 12"L x 20"W x 4"D (305 mm x 508 mm x 102 mm) food pans (sold separately).
  • Drawers support a wide variety of incremental pan size configurations.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Exterior digital temperature display.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 230 - 240V / 50 Hz.
  • 208 - 230V / 60 Hz.
  • 6" (153 mm) standard legs (1 set of 4 leg mounting plates required).
  • 6" (153 mm) seismic/flanged legs (1 set of 4 leg mounting plates required).
  • Heavy duty, 16 gauge top (available for flat and marine top).
  • Flat top (no marine edge).
  • Additional size drawer divider bars.
  • Drawer locks.
