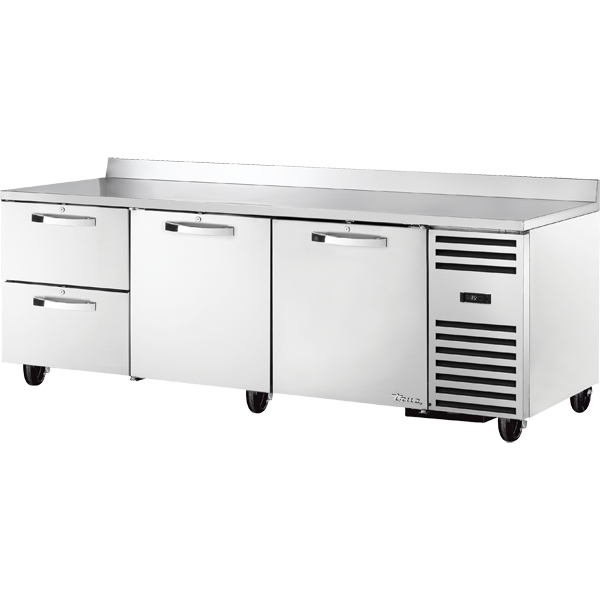

TWT-93D-2-HC~SPEC3

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Energy efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Condensing unit is accessed from behind front grill; slides out for easy maintenance.
• Cabinet Construction
  • All stainless steel front, top, sides, and back. Top and backsplash are one piece formed construction. Bacteria and food particles cannot be trapped underneath as with other two-piece worktop units.
  • Interior - Stainless steel liner. Stainless steel floor with coved corners.
  • Insulation - entire cabinet structure, solid doors, and drawer facings are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Doors / Drawers
  • Door or drawer assemblies can be located in any section of the cabinet. Location of door/drawers must be indicated at time of ordering.
  • Doors constructed of stainless steel exterior with clear coated aluminum liner to match cabinet interior. Drawers have stainless steel exterior facings and liners with stainless steel frames.
  • Door and drawer locks standard.
  • Each door and drawer fitted with Lifetime guaranteed heavy duty all metal working spec handle.
  • Door section - positive seal doors swing within cabinet dimensions.
  • Magnetic drawer/door gaskets of one piece construction, removable without tools for ease of cleaning.
  • Drawer section - Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
  • Drawers will support a wide variety of incremental pan size configurations; divider bars available.
  • Each drawer accommodates two (2) full size 12"L x 20"W x 8"D (305 mm x 508 mm x 204 mm) food pans (sold separately).
• Shelving
  • Four (4) adjustable, heavy duty PVC coated wire shelves The left and right shelf dimensions are 23–5/8"L x 28"D (601 mm x 712 mm). The center shelf dimension is 25–1/2"L x 28"D (648 mm x 712 mm). Four (4) chrome plated shelf clips included per shelf (door locations subject to customer specification).
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Heavy duty 16 gauge top and 20 gauge doors.
  • Counter-Top front is flush with front of doors/drawers.
  • Electronic temperature control with digital display.
  • Spec Series® logo.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical
  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • 3" (85 mm) diameter castors.
  • Cutting boards provided by others. Requires "L" brackets. Field installed brackets provided by True (contact factory).
  • 30" (762 mm) deep,–1/2" (13 mm) thick, composite cutting board. Requires “L” brackets.
  • Half door bun tray racks (door section only). Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).
  • This model can be built with interior mounted pilasters/tray slide kits.
  • ADA compliant models with 34" (864 mm) work surface height.
